PIC Camera

The PIC camera was on my list of cameras to review just before I returned to work after the two years lost years of COVID-19. Recently, when I looked up from my desk and saw the odd and unusual camera, I wanted to put a film into the camera, run it through its paces, and do a blog post on it. The main thing that caught my eye was the shape and size of the camera. You don't come across many round cameras with a straightforward design.

 I am trying to remember where the PIC camera came from, as I've owned it for five to six years. Like many of the other cameras I write about, the PIC camera was included in a group or "lot" of cameras purchased. I do remember when I received it; my first thought was that it was a "toy" camera, which I own many of.

The more I examined the camera, the more I realized it was not a serious camera. It does not have the ability to set shutter speeds, aperture settings, or even focus at a specific distance. It's just a simple point-and-shoot camera made for quick snapshots, a camera you can keep in your pocket for when you travel on holidays or visit friends and family.

The Company:

From what I can see online, the PIC camera is another camera with very little information regarding the manufacturer. There's conflicting information about the camera and who and when it was made. Some of the information I found states the camera was made in England sometime in the early 1950s by a company named Pressure Sealed Plastics Ltd. and distributed by Pic Distributors Limited.

 When I looked up information about Pressure Sealed Plastics Ltd., it was initially a London-based company. It states that the company existed from 1955 to 1966 when it was purchased. It was transferred from Peckham to Chesterfield in May 1970. Some online information also states that the company was not in London but in Southend on Sea. I'll leave it someplace in England.

In 1986, the organization was divided into two trading operations: Consumer Products and Industrial Products. The former was responsible for waterbeds. The latter took over the remaining operations and manufactured Rompa products, waterbeds, etc.

 From the information I found and posted above, I have no idea where the idea or manufacturing of the PIC camera came from. If you have other information on the camera, who designed it, or the company that made it, please let me know, and I'll change the information in the post.

The Camera:

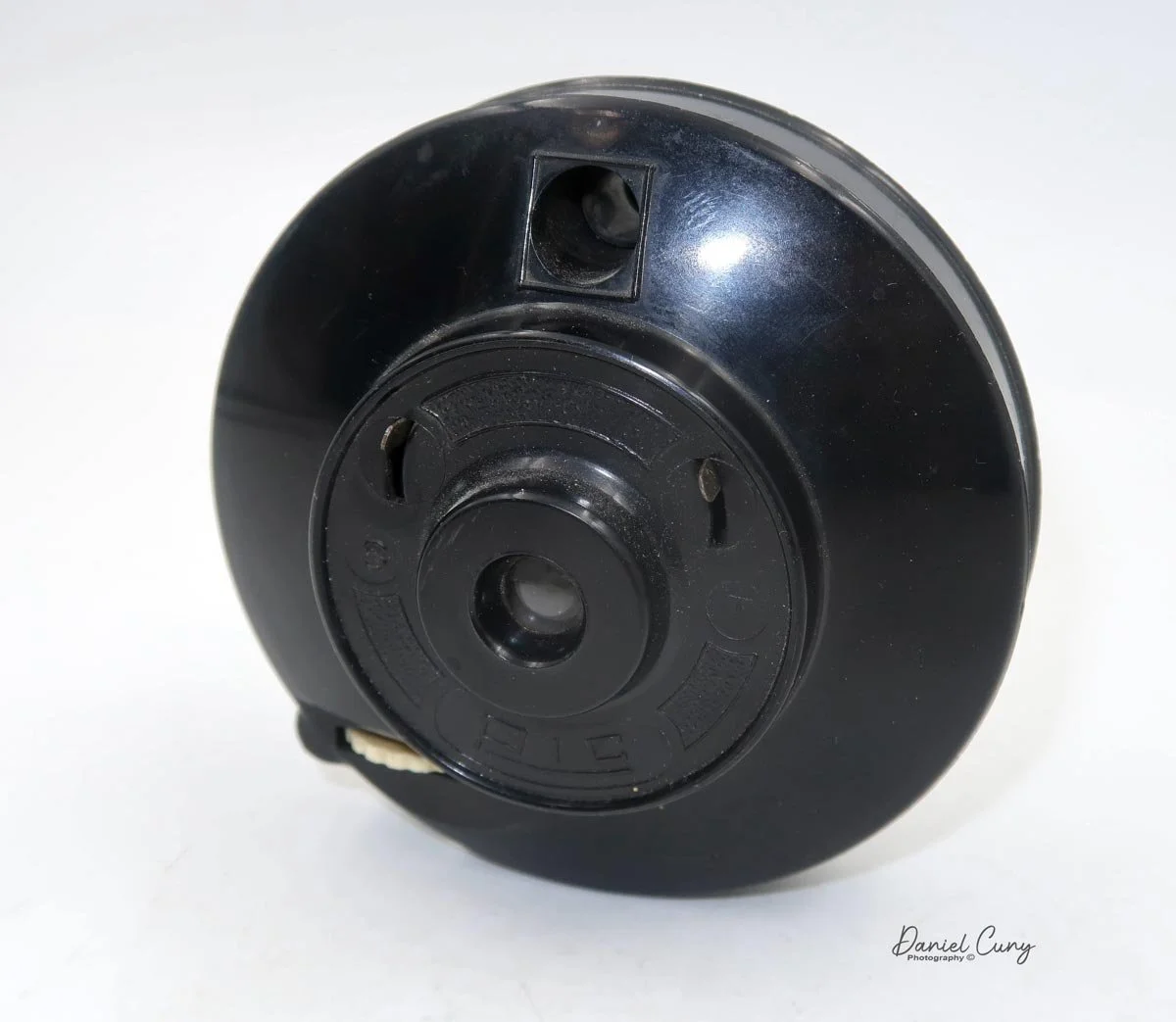

The PIC camera is a round camera that measures 3 3/4" in diameter, is 1 7/8" deep, and weighs 3.7 oz. with a fixed focus meniscus lens. The camera has a slight convex shape on the back along with the front, but halfway into the convex shape on the front, there are two tiers of flat surface where the shutter and lens are placed. The side view of the camera resembles a spaceship or UFO.

To open the camera to load the film, there is no latch or hinge to open the back of the camera, but you slide the front of the camera from the back of the camera and pull it off. My guess is this is where the "Pressure Sealed Plastic" comes from, as it's held together by a tightly fitting front that fits onto the rear of the camera.

 The rear of the camera has nothing other than two red windows that tell you the frame number you're on when advancing the film. On the outside of the back of the camera is written, Pats. Pend. Reg Dsgn No. 870468, Made in England. On the bottom right of the back of the camera is a slot where the film advance wheel fits.

In front of the camera, you load the film via an insert that fits into that area. The insert is a place to put the take-up spoon on the right and a new roll of film on the left. There's an opening for the negative, which measures 1 3/8" wide by 1 7/16", the exposed image size on the negative. A hinged wire acts as a pressure plate to keep the film flat when loaded into the camera. The insert is removable to make loading and unloading the film more accessible.

Underneath the film insert is a metal disc that covers the shutter assembly. When I received the camera, the shutter wasn't working, and I didn't notice that the metal disc covering the shutter assembly wasn't in its correct place. When I decided to write a post on this camera, I wanted to see if I could get the shutter working. This assembly is elementary and something even the non-mechanical person I am could get working again. I popped off the disc, and the shutter has two different levers corresponding to the levers on the front of the camera. My guess is that there is a shutter lever for "T" or timed exposures and another lever, "S," for snap. Generally the second shutter setting is "I" for instant, but this one is different.

 In the middle, there is a disc on the end of a piece of thin aluminum with a hinged rivet on the bottom that has the shape of an open safety pin, but the pin part is short, so it doesn't fit into the safety part. A spring holds the lens cover assembly in the closed position. Above the lens cover are your shutter levers, which also have hinged rivets, with a more extended metal arm that is bowed in the middle to fit over the lens covering disc, and on the bottom of the arm is a slight bend that allows the arm to interact with the shutter cover assembly. On the left of the shutter cover is a lever for the "T" shutter release for timed, and on the right is "S" for snap. A spring is between these two shutter assemblies to hold the arms away from the lens cover assembly.

Here's how the different shutter levers work. When you pull down the "T" lever, the shutter assembly arm slides over and pushes the lens cover away from the lens. Holding the shutter lever down keeps the lens open for the length of time you hold the lever down. When you pull the "S" lever down, it slides the shutter arm over the  "short pin" arm and grabs the shutter cover assembly. When you release the "S" arm, the shutter arm pulls the lens cover away from the lens, and due to the short pin arm, it slides off, and the lens cover closes, making a short exposure somewhere in the 1/50 sec timeframe.

The viewfinder on the PIC camera

There is a round viewfinder on the top of the camera, which doesn't correspond to the shape or the distance you get within your photos.



The Results:

I had some expired 127 film from Film for Classics, which I purchased just for these cameras to test out. I fixed the very basic shutter, replaced the metal disc covering the shutter assembly, loaded a roll of film into the camera, walked around my house, and took photos, and here are the results.

My Conclusion:

You can tell from the photos that the lens isn't very sharp. It has a very "Lomo" look to it. I didn't get to photograph something close because I felt the plastic fixed focus lens wouldn't produce tack-sharp images, but it did take pictures. It was easy to use, but I'd take nothing on holiday unless the photos I wanted to create were similar to a Diana or Holga-style camera. Overall, the camera worked, and I discovered it's relatively rare due to the plastic construction and short camera run. People ask for around $500.00 on eBay when you can find them. I'll put it back in my collection and move on to a different camera next week.

 Please comment on your thoughts on this or other cameras I've discussed. I'd love to hear your thoughts on this camera.

 Please be safe until next week's camera post.

SportShot Senior Twenty Camera

One of the first memories I have of the SportShot Senior Twenty camera was looking through McKeown's camera (bible), collecting cameras, and noticing the odd shape of the camera as I thumbed through the pages. Then, upon doing a little more digging into what made this camera special to me, a company in Australia made it, and it only existed for a couple of years. These are the cameras I desire, and these it's these items separate cameras in my collection.

My ACMA Sport Shot Senior Twenty camera.

 Whenever I travel alone for business or when my wife and I travel internationally, I always try to find the local flea market to see if I can find items that are rare in my part of the world. There are thousands of extremely popular Kodak box-style cameras, whether made from cardboard and leatherette covered or the bakelite cameras you see in every corner of the world. When I first started collecting, I would snatch up any camera because they were a "camera." But as time goes on and I see more of the odd and unusual items, I increasingly appreciate them.

I traded the SportShot Senior Twenty camera about a year ago for some items I had from a dealer who frequents the US occasionally from Australia. The trade happened at a camera show near to me. I got the SportShot Senior Twenty camera. I picked up a few other cameras from Australia, like the red Swiftshot and the Lexa box camera with an excellent metal faceplate. I believe he was happy getting tradeable items he could return to Australia, as it was hard to find items here in the United States.

The Company:

The SportShot Senior Twenty camera maker was the very short-lived ACMA, which stands for Australasian Camera Manufacturers Australia. They were based in Sydney, NSW, Australia, and existed from 1948 to 1950. I've looked at many different commerce sites in Australia and cannot find anything new about the ACMA company. They were one of Australia's only post-WWII camera manufacturers producing cameras. Inside the logo on the camera where the wording Australasian Camera Manufacturers Australia is located, the words British Make are there. There must have been British backing in the company to produce the cameras.

My best guess is that while the camera is somewhat awkward to hold and use, it wasn't very popular, and sales never caught on, so the company folded, and what was made are the only examples available today.

 Since a large part of my collection is colored cameras or cameras other than black, I like the fact that this camera came in red and green as well and had a matching plastic strap to match the camera itself. These are now on my radar for future purchases.

My Camera:

The SportShot Senior Twenty camera is triangular or trapezoidal in shape with what appear to be wings in the back to hold onto when taking a photo. The camera measures 5.5" wide in the back and 2.25" in the front. The camera is 4.5" deep, including the lens, and is 3.5" tall with the viewfinder closed but including the winding knob. The camera weighs 13.2 oz without the strap, which I don't have for this camera. The camera has a single red window on the back and shoots 6x9 format, producing eight exposures on either 120 or 620 film.

The camera is comprised of two separate parts. The top comes off with an effortless latch on the back that is somewhat spring tensioned with a hole that fits into a small knob holding the top to the bottom of the camera. On the top portion of the Sport Shot Twenty camera is also a pop-up viewfinder, along with a very odd winding knob. The winding portion of the film advance that fits into the film roll has a triangular shape; it will fit both 120 and 620 films.

 Because the camera can shoot both 120 and 620 films, the useability is a bit more interesting as this opens the camera's film up to different types. The downside of having the winding portion shaped as it is is that the film advance is more difficult to use, which is what I experienced when I shot a roll of film through the camera. On the top of the camera adjacent to the film advance knob is stamped ACMA S20.

The camera loading is also not the easiest thing to do. Once you have the top off, you can take the empty roll from the right side and put t on the left side where the advance knob is. When loading the film, the tricky part was the channel it slid into to keep it flat for exposure. You can't just put in the roll, slide it over the shutter, and attach it to the empty spool like you do on the majority of cameras. The SportShot Senior Twenty has a thin slot the film needs to go into to keep the film flat, as you can see in the photos.

To load the film, I put the leader into the take-up spool and rolled out a bit of film to slide it into the thin channel. It took me a few times to get it in because the channel was so thin the film paper packing would crinkle and fold a bit, along with the curvature of the channel. It wasn't an easy load, but eventually, It slid in, and I got the camera loaded. How you load the camera was another factor against it when trying to sell to the masses. You don't want to make things more complicated than they need to be.

Note the thin slot film needs to be slid into to load film.

When I went to shoot the film, I loaded it into the camera, and I went to clean the lens. When cleaning it, one of the sides pressed in. I thought, "This wouldn't work with one side of the lens, not in the right position." I turned the lens, and it unscrewed from the camera body. I pressed the lens back into place, then re-screwed it back onto the camera.

 There are only two settings for the shutter. "T" for time, where the shutter stays open as long as you keep the shutter button depressed, and "I" for an instant for everyday shooting. The lens is a 13.5cm or 135mm lenticular lens f3.5 aperture. The lever above the lens is the shutter release, and you press it down towards the lens to take the photos. The viewfinder is a simple pop-up style and closes when not in use. There are no other settings to choose a different aperture, which makes this an extremely simple-to-operate camera.

My Results:

After struggling to load the camera, I had put a roll of Ilford FP-4 in the camera and walked out in front of my house to see how it did, and here's the results.

Conclusion:

Other than struggling to load the film into the camera, along with advancing the film. Due to the shape of the advanced knob that fits into the take-up spool, it didn't grab very well, and there were several times when the knob turned, and the film didn't move, but as long as I took my time, it did advance. Maybe it would do better with 620 film since the slot on the spool is thinner, and the advance knob would fit and hold into the spool better. I'm not going to say the camera was hard to use, but it wasn't the easiest, and I can understand why people would get frustrated using it. None of the images are sharp, but some are better than others. This may have been caused by removing the lens.

 Thank you for taking a few minutes from your day to look over this review. I realize it's not a sophisticated camera, but it definitely has an unusual shape.

 I have an odd camera set for next week's post and hope to hear your thoughts on it or other cameras I've written about.

 Until next week, please be safe.

Dan 35 I Camera

My Dan 35 Model I camera

I need to start this post back in time. I first started collecting cameras and other photo items in the late 1970s or early 1980s. I can remember purchasing one of McKeown's Camera Price Guides and spending hours combing through each camera manufacturer, looking at the cameras they had made in the past. There were so many odd and unusual like very rare original Leica; the very first bullet-shaped brass Voigtlander camera, the Compass camera or Photosphere that I could only dream of owning, and many were so far from the price budget that I knew there were only a pipedream.

 Many large companies, like Eastman Kodak, Polaroid, and Zeiss, made hundreds of different model cameras, which were abundant. Then, there were the smaller camera companies that produced unique cameras, like Univex, which was the first camera I owned. It was a Uniflex that was given to me by my uncle Bud, who, to this day, along with my brother Tim, I owe my love of photography.

 Then, I can remember thumbing through the price guide and finding a tiny company that produced a camera near and dear to me, the Dan camera. I immediately thought I needed to find one of these to put into my collection. My initial search was hopeless, as many of the local flea markets and antique stores I'd frequent only had the very common Kodak, Polaroid, Zeiss, and other companies like Herbert George and other American brands.

Online Auctions:

It would help to remember that this was before eBay, which didn't exist before the mid-1990s. I was an early adopter of buying and selling on eBay in 1997. At that time, there were no photos, and it was mainly just a buy/sell board with an auction element so you could post a camera or item for sale, but you only had the description from the seller to go by. When I first joined eBay, there was no name to have but a number. My original number was 1034; you had to do everything through DOS.

 EBay made a massive difference as it gained popularity. It changed how people bought and sold items. Adding photos gave the buyer more confidence in their purchase, and rarer items could hit higher pricing due to the inability to find them.

 For many years, the Dan Camera was very elusive, and since the camera was from a smaller company, the scarcity and pricing made the purchase of it next to impossible up until a couple of years ago when I was looking through a different online auction website, and I found a grouping of cameras which piqued my interest. As I zoomed in to look at this lot, there was a portion of a lens I could see.   I could barely read "Dan" on the ring around the lens as I looked closer. Here was my chance to finally own the elusive Dan 35 camera.

Name embossed on the back of the camera.

 The auction happened, and there was minimal interest in this group of cameras as many of them were very common items. However, these are the groups that I really enjoy because tucked away in the corner "could" have a gem hidden, and in this case, there was. I won the camera lot, got the items shipped to me, and there it was as I unwrapped it: the Dan 35 camera. To my amazement, it was the first model.

History:

The Dan 35 is a simple Bolta film camera made in Japan after WWII. Bolta film was invented by Johann Bolten, who founded Bolta-Werks in Nuremberg, Germany, in 1936. The film was to go into his smaller, more compact cameras named the Boltavit. Bolta Werk later produced the Photovit line of cameras from 1936 to the 1950s. Bolta film was incorporated into many different cameras during this period and was a nonperforated 35mm film with a paper backing loaded into special cassettes. Later models of film were spooled similar to films like 828 and 127.

Stetch of Dan 35 Camera by Hagimoto Danji.

 The Dan 35 camera was made by Hagimoto Danji. He built a small plant in Suwa to manufacture the Dan 35 camera, which he sold in his camera shop in Ginza after WWII in 1945. After the moderate success of the Dan 35, there were three different distributors for the camera between 1945 and 1950, when the camera company went bankrupt. The logo on the camera coincides with the company's name, which is H for Hagimoto above Dan for Danji on the far right of the camera.

 Here's where it gets a bit fuzzy. Yamato Koki Seisakusho was a camera company that started in Tokyo in 1943. It made shutters for Japanese camera companies like Gelto and Leotax. The first cameras produced by Yamato were the Minon 35, Minon Six, and Pax 35.

 Yamato, known to produce the Minon 35, a copy of the Dan 35 III and later the Pax 35, is a camera that is a copy of the Super Dan 35. Some sources say Yamato made the Dan 35 and Dan 35 II, but others say they took over producing the Dan 35 after Hagimoto went bankrupt in 1950. Yamato produced the Pax line in the 1960s.

My Camera:

The Dan 35 is a very simple camera with a torpedo-shaped viewfinder on top. It measures 3.25" wide by 2.25" tall from the base to the top of the finder and is 2" deep from the front of the lens to the back of the camera. The camera weighs a whopping 5.2oz and is considered a miniature camera. The Dan 35 has a Dan Anastigmat 40mm f4.5 lens with a Silver-B shutter.

Around the lens is the focus ring, a helicoid focus measuring from 1 meter to infinity. Just behind the aperture numbers on the lens is a knurled ring that sets the aperture. In front of the aperture numbers is another knurled ring that sets the shutter speeds on the camera. There are only shutter speeds, 1/25, 1/50, and 1/100 sec, along with B. On the left of the knurled ring is a cocking lever to cock the shutter, and the shutter release is on the right side to expose the film.

Logo and Torpedo viewfinder

 To load the film, on the top of the camera is a locking lever with "L" for lock and "O" for open. Switch the lever to "O," and the top comes off to load the film. The base comes off to load in later models like the Dan 35 Model II. My camera has no spools to load the film, and the shutter doesn't work. On the back of the camera is a red window with an open/close lever to see the numbers on the paper backing of the film so you know where to stop for your next exposure. Also, Dan 35 is embossed on the back of the camera.

Conclusion:

Unfortunately, I don't have film, and the camera's shutter doesn't work, so I couldn't take photos with this camera to share.

 I mainly have this camera for a couple of reasons. One is its rarity; the more important reason is that it has the same name as me, so I get a kick out of that. I have another miniature camera set aside for next week's blog post, which I also find fascinating.

 Thank you for taking a few minutes to review my blog post about the cameras in my collection. Please be safe until next week.



Bolsey-Flex Trio Camera

As I was sitting at my desk a few weeks back as I was figuring out what camera to write about next, I looked down at a box of cameras I have in my office, and on top was the Bolsey Flex Trio, which is in the box and complete with the instructions. As I started putting together my thoughts about the camera, I had to pull out the camera, and many different ideas came into my mind.

My Bolsey-Flex Camera & Instructions

My Bolsey-Flex Camera & Instructions

The camera for its age isn't in great shape but does work. The camera uses 120 size film, which is a HUGE benefit to me since the film is so readily available. I decided to load a roll of Black and White film in it to shoot as I walked through my neighborhood. I processed the film and was somewhat impressed by the Bolsey-Flex. It's a Pseudo Twin Lens Reflex camera, which means it looks and feels like a TLR camera but works more like a Box Camera due to its simplicity.

Camera Research

I was researching the camera, only to find that a friend of mine, a brilliant writer and camera collecting blogger, Mike Eckman did a blog post on the same camera just a few months ago, which you can read here. With that said, Mike has quite a bit of information on the designer, Jacques Bogopolsky, and camera companies he worked for. The famous movie camera, Bolex, was named after Jacques Bogopolsky, and he also designed cameras for Pignons S.A., the original company that made Alpa Cameras.

For my blog post, I want to concentrate on the experience of using the camera, the image quality, and my overall thoughts on how such a beautifully designed camera handles out in a natural shooting environment. I want to offer a few facts on the camera in general. The camera is an all-aluminum cast body with beautiful light green coverings. In the box comes all you need to take the camera out into the world to take photos.

The Camera

The camera measures 4.75" tall without the viewfinder in the closed position and 6" with the finder in the "up" position. The camera is 3.75" wide, which includes the width of the knobs. It is 3.75" deep, including the lens in the focused to the closest focused position, and 3.5 with the lens focused to infinity. The Bolsey-Flex incorporates an elementary zone focusing lens which can focus from 5 feet to infinity. The focus on the camera is strictly a "guess focus" style. While this is a Psuedo TLR camera, the top lens does nothing more than frame the photo in the camera. There is no focusing capability when looking through the viewfinder.

On the Bolsey-Flex shutter, you have the capability of "I" for an instant, which shoots the shutter at 1/50th of a second shutter speed, and "T" for a time exposure. The camera does have a synchronized shutter which couples with the flash attachment. The camera also has an 80mm lens with three aperture settings, F7.7, f11, and f16.

The flashgun takes 2-"AA" batteries to power the Type No.5 flashbulbs that fit the top. You unscrew the bottom of the flashgun to put the batteries into it. It would be best if you took the camera case off the camera to use the flash. The flashgun fits into the camera synchro port, which is below the lens and held by the screw that holds the case into place. When you trip the shutter, the camera sends a signal to the flashgun, which fires the flashbulb.

My unit seems to be in good working condition. Unfortunately, I didn't have bulbs when I loaded the camera with film and did all my shots outdoors. It would have been fun to shoot with bulbs. I'll need to test another camera that uses a flashbulb in a future post, not that I have some bulbs to try.

To load film into the camera, there is a knob on the left side of the camera with "Open," Close" on it. Turn the knob to "open," and the top of the back swings down open to load the film into the camera. Nothing special here as the. Put the empty spool on the top and film onto the bottom area. The shutter won't fire until the winding lever is turned to advance the film. On the back of the camera is the red window with a sliding cover to see when the film is advanced to the following frame number.

 Images

Here are some of the images I took with the Bolsey-Flex camera.

Rocks

Rocks

Backyard Aspen

Backyard Aspen

Evergreen Tree

Evergreen Tree

Dogwood

Dogwood

Conclusion

I thought the camera did a very excellent job for a pseudo-TLR camera. It's not much more than a glorified box camera. The camera was easy to hold, the exposures were good, thanks to my sunny 16 rule when exposing to sunlight. The lens vignettes a bit, but I enjoy that. The ease of operation and see the frames in the red window when advancing were spot on. I'd recommend this very well-built camera to anyone.

 Thank you for taking some time to look over this post. Until next time, please be safe.

Rare Univex Model AF Cameras

I started writing my blog posts to let the world know about the cameras in my collection, the fondness I have for cameras, and anything photographic. I had a LOT of time on my hands since losing my position a year ago due to the Covid 19 pandemic. The company I worked for restructured the sales position, and I was the odd man out.

My collection of Univex AF Cameras

My collection of Univex AF Cameras

 I love the companies that hired me. It's been gratifying to get back to work, and it feels lovely to contribute to the workforce and the photo community I feel so passionately about. I've been lax in my camera blog posts lately because I took a new job that has consumed most of my time and energy for the past few weeks.

Blogging

I'm hoping to get back to writing this post every other week now instead of weekly as I was doing. Time willing, I'll do it every other week, or maybe weekly should time allow.

 I wanted to take a few hours to photograph the cameras I'm presenting this week. It's not a single camera like the past blog postings, but a whole collection of cameras that I've built over many years of collecting.



The Company

The Universal Camera Corporation started in 1932 at 521 Fifth Ave., then moved the following year to 32-46 West 23rd St. New York, NY. They stayed in that location until they ran out of office and manufacturing space in 1938. Starting in the depression era, they made reasonably inexpensive cameras made that also used their film, the successful Universal six exposure #OO film for their cameras.

Until 1938, The Universal Camera Corp. was making primarily smaller cameras like the Original Univex Model A camera, which sold for $0.39 and was wildly successful. In 1938, to revise the sales of #00 film, Universal Camera Corp came out with a line of Candid Cameras, which became increasingly popular during this time.

The Story

This story is about the small "A" model cameras and their specialized models in the AF line. As mentioned in many of my previous posts, my love for colored cameras and the odd, unusual models camera manufacturers made. I started collecting the Univex AF line well over 20 years ago when I came across their colored cameras.

 I believe the first camera purchased the standard and graphic-faced AF-2 model with the black face and graphic red lines running from top to bottom of the camera. Then I started buying the colored models, green, blue, brown, grey, and found their Girl Scout model when I searched out "Scout" cameras. At this time is when I came across the elusive Hollywood, GE Topper, and very rare Aristocrat model.

 I found the Hollywood camera (brown model) first on eBay and was excited to have it in my collection. I've been looking for the GE Topper and even more elusive Aristocrat camera for years. I did see GE Topper models on eBay, but they were always more expensive than I could afford.

My collection of Univex AF cameras

My collection of Univex AF cameras

The Elusive Camera(s)

In my camera searches, I received an email about someone back east selling a "lot" of cameras, and looking at the photos, I saw it…..The elusive Aristocrat camera. It was an online auction, and I just HAD to have it. On the day of the sale, I went online, and when the camera lot came up for sale, I was ready. The pricing started slow and started to build. It got close to my limit, and low and behold. I had won the auction along with a box of items I wasn't sure I wanted.

 When I talked to the shipper about the items in the box, I told them I only wanted this one item, but they already had the items packed and ready to ship. I bit the bullet and had the whole lot shipped to me. From the time I paid for the shipping to get to me to the day it arrived, I knew the one camera to complete my collection was the GE Topper. For days, all I could think about was finding the GE Topper camera.

 When the box arrived, I was giddy with excitement to open it and put the Aristocrat model on my shelf and the other models in the collection. All the cameras were bubble-wrapped. Pulling items out, I kept looking for the Aristocrat. I pulled this one bubble-wrapped item and, turning it over, I faintly saw….could it be what I believe it is, the GE Topper camera? I gently unwrapped the camera, and as I was peeling off the wrap, the front face became more visible. It was the GE Topper model. My heart was pounding, and my eyes teared up a bit. Not only did I get the Aristocrat camera BUT the GE Topper too in the same sale.

Later, I added the odd difficult to find, green Hollywood camera, so along with the AF-3, AF-5, and AF-5 models, I can call this collection complete unless something else pops up that I'm not aware of.

 Thank you for taking some time from your schedule to read my blog on cameras in my collection. Until my next posting, please be safe.



R. F. Hunter, Gilbert Box Camera

The cameras that caught my eye early in my collecting years were mainly colored cameras. Red, blue, green, brown tan cameras were the cameras I enjoy. If they had the original color bellows, it was that much better, or If the cameras had some design, even better still. Then I started to add red bellows cameras, as well as the odd and unusual cameras. When I first got a look at the Gilbert Box camera, which had the name R. F. Hunter LTD. London, under the lens, I knew I needed to own one. I thought it was not only a great camera but close to a work of art and a mid-century masterpiece.

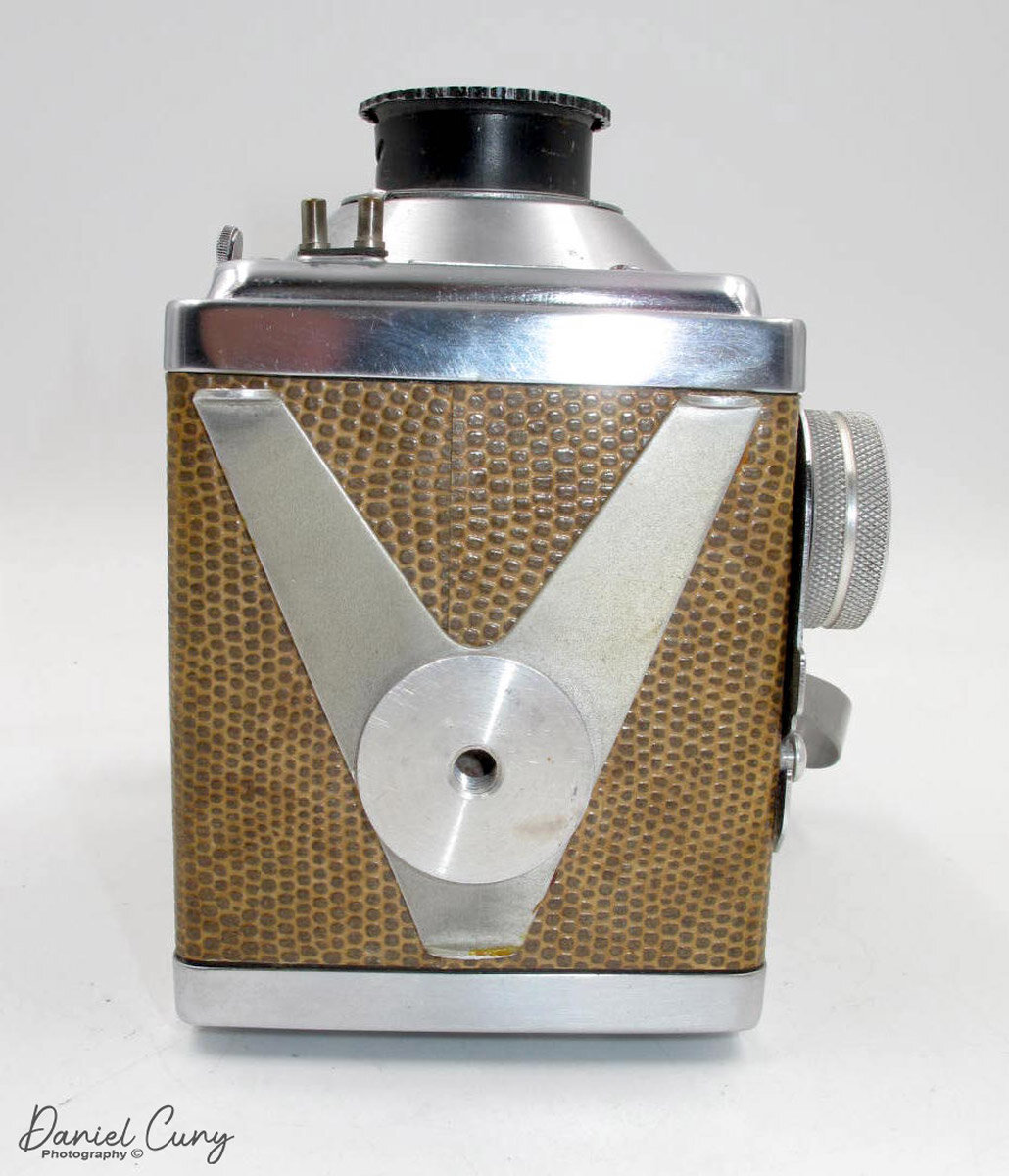

R.F. Hunter, Gilbert Box Camera with filter

R.F. Hunter, Gilbert Box Camera with filter

Company Background

R. F. Hunter, LTD. London was an importing and distribution company which was initially located at 40 Doughty St., in central London, England. In their later days before going out of business, they were located at 51 Gray's Inn Road, London. They started in the early 1930s, mainly distributing cine projectors and cameras.

Their main claim to fame was Franke & Heidecke Rollei products in the UK in the 1930s. This was the first distribution of their products outside of Germany, mainly due to Cyril Hunter, the Managing Director of R. F. Hunter's close relationship with Herr Franke. The story goes that Herr Franke brought his son to the UK just before WWII and asked Cyril Hunter to watch him in the UK during the wartime. He did so but needed to report to the authorities frequently with his son.

After the war, Franke & Heidecke went back into full production, but licensing the UK's distribution was limited. It wasn't until 1950 that the country changed the licenses, and robust distribution could of the product started to flow freely. According to advertising for the Gilbert camera, R.F. Hunter introduced it in 1953.

The Camera

The brushed stainless steel body with lizard skin sides are what drew me to this camera. When I first saw it, I needed to have it for my collection, just for the camera's refined look, the shine, the color, and Lizard skin sides. It had everything someone like me coveted. It had it all. Once I bought it and received it and started to play with it, I knew I had a superb camera. The whole viewfinder rotates for vertical or horizontal photos. The camera has a double exposure lock, so you can't take multiple images on the same frame. It takes 8-6x9 negatives on 120 film.

The camera measures 4.5" tall by 3.5" wide by 5" deep, including the lens. The lens is an approximate 105mm lens with two aperture setting (Dull) F5.6 or (Sunny) F11. The aperture settings are controlled by lifting or depressing a tab on the camera's upper right, next to the viewfinder. There are two shutter speeds for taking photos (fast) 1/50 and (slow) 1/30, a tab on the camera's left side. My camera doesn't allow me to pull up the tab to get the "slow" settings, so mine is 1/50. There is another setting located on the shutter release of the camera. If you pull the shutter release away from the body, there s an option for "T" or time exposure if needed. Another oddity about this camera is on the side where you focus the lens. As you rotate the lens, there are settings for 8,12, or 20 feet. I wonder why this was in feet as opposed to meters? Was this made for the US market?

On the left side of the camera is the film advance knob, which also cock the shutter, preventing double exposure. Behind the film advance wheel is a liftable latch that holds the camera's body portion to the lens/shutter area. Lifting the latch and pulling the body away from the lens, opens the camera for film loading. The camera's back has a slight curve outwards to replicate the film plane's arc, and there's a window that opens/closes so the photographer can see the frame numbers pass by when advancing the film.

Looking at the top's rotating viewfinder, you can see the etched line for registering your image for vertical or horizontal photos. I prefer the etched lines instead of the cropped corners many other box cameras have. My camera also came with the yellow filter, which fits snuggly into the lens. Next to the shutter release is a couple of flash sync posts. The camera's bottom has a tripod socket in the middle of 3 legs that prevent the camera from sitting directly on a table or ledge, which keeps the bottom from getting scuffed up.

Images

I loaded the camera up with Ilford Delta 125, black and white film. I only wished I had a faster film to shoot as the day I went to shoot was very overcast, so the photos are a bit dark, but not too bad. These images are also unretouched and quickly scanned for the post.

Conclusion

I've enjoyed this camera for many years from afar as it was sitting with my other cameras, but I am happy that I took it off the shelf and took photos with it. To me, it's a beautiful camera. I love the design, the look, and the lizard skin coverings. It is a mid-century beauty that I intend to cherish for many more years for an almost seventy-year-old camera.

 Thank you for taking a few minutes out of your day to look this over. I'd love to hear from you about your experience with the camera and if you've taken it out to use. If you have questions or comments about this or any of the other cameras I've written about, drop me a line. Until next week, please be safe.

Voigtlander Superb

The Voigtlander Superb is a camera I owned for a short time, almost thirty years ago. At that time, I was buying and selling cameras rapidly and not using them. To me, at the time, it was more of a commodity. The Superb I owned also had a more rare lens, and someone was willing to pay me handsomely for it. At the time, with growing children, It's something I needed to do. Things have changed, and I've evolved in my appreciation for cameras.

My Voigtlander Superb.

My Voigtlander Superb.

Company Background

In my post about the Voigtlander Vitessa, I made a brief history of the camera company that you can see here. The thing that amazes me about Voigtlander is how early they got into the photography industry and the names and products associated with them.

 In 1839, publications introduced photography to the public; Voigtlander's optics were the first mathematically calculated optics made by mathematics professor Josef Petzval. Peter Voigtlander gave technical advice regarding these lenses, which cut down exposure times to about one minute. That was revolutionary. By 1840, they were not only producing cameras, the all-metal Voigtlander Daguerreotype camera, they also introduced the first Petzval photographic portrait lens, with a maximum F stop of F3.6, know as the fastest lens of the time.


Camera and case

Camera and case

In 1923, Schering AG's photo division purchased Voigtlander, and by 1925, they started mass production of cameras and photo equipment. Voigtlander introduced such everyday items as the zoom lens, the 36–82/2.8 Zoomar in 1959, and the first 35mm compact camera with a built-in flash, the Vitrona in 1965. Voigtlander introduced the Superb model from 1933 until 1939. There weren't many modifications during that time. The early cameras had "bunny ears" as camera strap holders and the later years had a winged slot for the strap. You can see a version here, and there is an instruction manual here.

My Camera

Recently, a Voigtlander Superb became available to me, and the price was fantastic, so I immediately jumped on the offer. The seller stated it was in excellent working condition and also had the original case. Voigtlander made the Superb with two different lenses. The rarer and challenging to find 7.5cm (75mm) f3.5 Heliar, the one I owned previously. The more common lens is the 7.5cm (75mm) f3.5 Skopar, which this camera had. When I received the camera, there was no mold, mildew, or fungus on the lens, and indeed the camera was in fine working condition. Now it was time to take the camera out for a spin.

Using the Camera

It was time to get myself familiar with the camera again. Holding the camera is very comfortable. Popping up the viewfinder, I immediately noticed there's a bubble level in the upper right-hand corner. I liked that. The magnifier is held in place by a small clip, so it doesn't pop up when you press on the front of the hood like the Rolleiflex's do. At least mine didn't. You focus the camera by sliding a bar on the bottom of the taking lens. The focusing is very similar to the Minolta Autocord. I prefer this method as opposed to the focus knob on the side of the camera. It allows me to keep my hands under the camera when focusing. The viewing lens points down when you focus closer, which corrects for parallax. That's fantastic.

Looking at the shutter speeds around the Compur shutter, I noticed they are reverse. Then I noticed a small prism/mirror right next to the lens. Holding the camera and looking down allows you to see the shutter speed set in the window of the prism/window. That's genius. The shutter speeds go from 1/250 to 1 sec, along with 'T' and 'B.' The aperture settings are f3.5-22 and on a small dial to the right of the viewing and taking lens. When you're looking down from the top of the camera, you can see the shutter speeds and aperture settings without tilting the camera up to view them. You can easily see the focus distance, which you can see on the top of the viewing lens.

Here's where the camera gets fun, loading the film. The Voigtlander Superb has a horizontal loading and transport system. If not all other Twin Lens Reflex cameras, the majority use a vertical loading and transport system. On the left side of the camera is an angled bar that attaches to a metal nub on the back. Lifting the bar from the nub and opening it to the left exposes the take-up spool on the camera. Opening the back to the right reveals where you load the film in the camera. Put the fresh roll of film on the right, and pull the leader across the shutter area to the take-up spool on the left.

Viewing the shutter speeds.

Viewing the shutter speeds.

Just above the film chamber is an advance lever. Wind the lever to advance the film. Close the back. On the right side of the camera is the red window. There is an inside cover for the window. It's opened/closed by the square knob above the red window. I watch until the frame number reaches #1. Then I close the window. Above the square knob is a switch. This switch resets the frame counter, which you can see on the back of the camera. The film advance lever doesn't automatically stop at the next frame, so you need to advance it until you see the frame number which is five cranks.

Images

I took the camera out a couple of times this week. Here are some of the images from the camera.

Conclusion.

The Voigtlander Superb is an 80-year-old gem of a camera. It's easy to load and unload. The ability to see the shutter speed and aperture settings when looking down on the camera is excellent. I enjoy the bubble level in the viewfinder, so I know my camera is level. It fits nicely in my hand and isn't too heavy. The viewfinder is just a bit dark, but nothing to deter me from using it in the future. Another oddity is when I processed the film, and the images are across the film sideways instead of running top to bottom. It just kind of surprised me, but putting the negatives in my sleeves, they work better that way. If you run across one for a reasonable price, buy it, and I don't think you'll be disappointed. A great camera.

 I truly appreciate you taking the time to read my post. It does mean a lot to me. If you have comments or concerns about the article or the camera, please drop me a line. I'd love to hear from you. Until next week, please be safe.
