Purma Special Camera

As I was cleaning out a box of cameras, looking for the next camera to shoot with and use for my next camera blog, I grabbed a brown case that I had put in the box a long time ago. As I turned the case around, I saw the name Purma on the front of the case and thought to myself, This will be my next camera to discuss or talk about in my blog.

My Purma Special Camera

 The Purma Special is a camera I purchased well over 20 years ago. I remember it was early in my collecting and when I was buying and selling on eBay. I started on eBay as a seller and buyer back in early 1997. When you engaged with eBay then, you didn't have your name as an ID, but they assigned you a number you'd use to log in and for sales purposes. I remember my number was 1032 before changing it to my current name, "Clix."

 At that time on eBay, there were no photos on the site, and it was similar to a message board where people would describe what they had for sale, what you were asking for, etc., Very similar to what Craigslist was before photos. Having McKeown's guide for cameras and thumbing through it daily, I was intrigued by cameras from other countries, and the Purma Special was one that I desired at the time due to its odd diamond shape and the fact that it was made in England.

Because the Purma Special camera is, in my opinion, a camera oddity due to the design of the camera, the shutter used, and the somewhat popularity of the camera, it's been reviewed and discussed by several of my camera blog friends like Peggy of Go Camera Go and Mike Eckman. Still, I wanted to make sure people were aware of my odd and unusual take on cameras from yesteryear, so this is more like Peggy's post about my thoughts on using the camera and the overall take on what a camera gem this is.

My Purma Special with Case

The Company:

Purma Cameras Ltd. was founded in 1935 in London. The name Purma is a combination of the two owners of the company: Tom Purvis, a well-known artist and lithographer who worked for LNER (London and North East Railway) from 1923 to 43, producing beautiful and popular advertising posters.

Diagram on how the shutter system works on Purma Camera

 The other partner in the company was inventor Alfred Croger Mayo, who, along with Joseph Terrett, invented the unusual and very simple gravity-controlled focal plane shutter used in the Purma cameras. I believe this is Purma's real claim to fame and set them apart from other camera companies of the time. They also had financial backing from David Brock of Brock Fireworks, a company that started in 1698 and is the oldest British fireworks manufacturer.

Purma introduced its first camera in 1936, the Purma Speed. It was an enameled metal and chrome camera with a pop-up viewfinder. The Purma Speed camera had six shutter speeds and looked like a more traditional rounded-corner, rectangular camera.

Ad for the Purma Special

 With the introduction of the Purma Special camera in 1937, the company turned to an all Bakelite camera, along with a flatted diamond shape design with an art deco appeal to the camera due to the thin ridges built into the camera, which extend all around the camera. The Purma Special only had three shutter speeds but has a classic sleek design, and one that was the camera that set them apart design-wise from other cameras. The unique diamond shape and the use of Bakelite, a revolutionary material at the time, gave the Purma Special a distinct look and feel, setting it apart from its contemporaries.

 The Purma Special was imported to many different countries, including the United States. According to an ad I found from 1939, the camera sold in the US for $14.95. It's my understanding that this was their most popular camera, although I cannot find sales records to prove these claims, as it's just from what I see for sale and the quantity of Purma Special cameras available today. The Purma Special was a popular choice among amateur photographers and was widely available in the market, contributing to its popularity and the large number of units still in circulation today.

There are a couple of unique features of the Purma camera. One is the 'pop out' lens, which is concealed by a thread in the lens cap, a clever design that protects the lens when not in use. When you screw the lens cap back onto the camera, it also locks the shutter. Unfortunately, these lens caps get lost, and many of the used Purma cameras are sold without the lens cap. The second is the use of plastics in the viewfinder. Purma was the first to do this, a pioneering move that made the camera lighter and more durable. These innovative features were ahead of their time and contributed to the Purma Special's appeal among photographers.

Purma also introduced the Purma Plus in 1951, which had an aluminum body and sold for £12.00 at the time. Production for the Purma Plus lasted until 1959. I cannot find why the company stopped producing its camera, so I assume it closed around 1960.



The Camera:

My Purma Special camera measures 6 3/4" wide by 2 3/4" tall by 2 1/4" deep with the lens cap on the camera, and the camera weighs 12 oz without the fitted leather case.  The camera has a Beck 2 1/4"  F6.3  lens with a fixed focus from 12' to infinity. Purma did sell a series of close-up and portrait attachment lenses that allowed for focus from 3.5 to 5' but were sold separately. These are items I do not have.

The Purma cameras use 127-size roll film and produce 16-1 1/4" square images on the negative. The Purma special doesn't have a locking mechanism to keep the back attached to the front of the camera. They are held together just by friction, but the back of the camera fits tightly to the front. The friction held back doesn't prevent it from accidentally opening if something were to happen. To open the back of the camera, there is a tiny thumb notch where you put your fingernail in and pull the back from the front.

The camera utilizes two red windows on the back of the camera, so you get 16 frames on the film; the photographer winds the film to the #1 exposure on the left window, then after taking the photo, winds the film so the #1 exposure shows up on the right side window utilizing the same frame number for both the left and right red window on the back of the camera. Once you shoot frame #1 on the right red window, the photographer winds to frame #2 on the left side window, and so on.

The Purma Special has a curved film track that holds the film flat against the shutter with a two-sided pressure plate attached to the camera's back door. The shutter system only has three shutter speeds. The shutter uses a series of different size slits in the metal curtain along with a brass weight within the camera to determine what shutter speed is used. The camera also depends on how you hold it, which would set the shutter speeds used. Remember, the negative is square, so having the camera in either vertical position doesn't change the image in the frame. It will only change the orientation of how the image is captured on the negative.

When you hold the camera in the usual horizontal position, the shutter would shoot, and the medium shutter speed would be 1/150th second. Turning the camera so the advance lever was at the bottom, or the "slow" speed, the shutter, the camera shutter is set to 1/25th sec. When you turn the camera in the other direction, with the film advance lever at the top, which puts the shutter in the "fast" position, the shutter speed is set to 1/450 sec.

Top view of Purma Special camera with circular wheel to cock the shutter, and shutter release

To take a photo, the photographer needs to cock the shutter. To do this, you turn the circular wheel on the top of the camera in the direction of the arrow. There is a small piece of bakelite sticking out to turn the wheel fairly easily. Once you turn the wheel in the counterclockwise position, the wheel will stop, and you'll hear a click which means the shutter is cocked and ready to make the exposure. You can do this with the lens cap on, but the shutter won't release until the lens cap is off.

 The shutter release is on the top and left side of the camera. Simply press the shutter release to trip the shutter. BUT REMEMBER. Turn the camera as needed to change the shutter speed, especially since the camera has a fixed aperture lens. Wind the film to the next frame, then repeat until. It was odd for me to use this camera as I'm not used to having the shutter release on the camera's left side.

For those interested, here’s the original instruction manual for the Purma Special Camera

My Results:

I did have some outdated Film for Classics 127 film in my drawer, so I loaded up the camera and went to a local waterfall to take photos on an overcast Sunday afternoon. Go figure a cloudy day when living near Portland, Oregon. That will be my life for the next four months or so. The results were OK, but I was mildly disappointed when I looked at what Peggy and Mike did with the camera.

 It may also have been the fact that the film I processed was processed in a different tank than I'm used to using for 127 film, and I messed up putting it on the developing reel, so that was my fault. I have noticed whenever I use the Film From Classics film, the imprint from the paper backing seems to bleed onto the negatives, and I'm unsure if that's due to the film's age and being out of date by a year or two or something else.

 Here's what I salvaged from the messed-up developing roll I put through the Purma Special camera. It's nowhere near as lovely as Peggy or Mike's photos, but overall, it yielded decent results.

My Conclusion:

It was a fun camera to shoot with. Turn the camera to set the speed, point at your subject, and shoot the camera (with your left hand). Wash, rinse, and repeat. I hoped for better results but tried a different reel to process the film.

 Thank you for reading the blog post on the Purma Special camera. I'll definitely use it in the future due to its simplicity and unique shutter system.

 Until next week, please be safe.



Bussox-Sport Luxe Camera

he Bussox-Sport Luxe camera is another beautiful camera purchased at the Paris flea market when my wife and I traveled there this past summer. While visiting one of the hundreds of stalls within many buildings comprising the Paris flea market, I found a wonderful gentleman with a case of cameras and other photographic items for sale.

My Bussox-Sport Luxe Camera

As I mentioned in many of my previous blog posts, I love cameras that are colorful or unusual. Maybe they are toy cameras shaped like a soccer ball or a cartoon character. I own many colored box and folding cameras that are different from ordinary black box or folding cameras. That's what drew me to this wonderful, small, and odd camera.

 Within the stall, there was a case containing a group of glass negatives, the Zeiss Super Nettel that I previously wrote about, and this lovely exotic brown camera, which looked very familiar but had a name that I wasn't familiar with. I purchased all the items and went on my way to find other treasures.

 When I returned to the hotel, I took the brown bakelite camera from its case and did some more research. I found out the camera is called Bussox-Sport Luxe, made by Ruberg & Renner and explicitly exported to France from their factory in Germany. Also, looking at the back of the camera, it appeared to have a roll of film still in the camera, and the number on the frame was four, so with any luck, I could process the film and find other photos that might interest me.

The Company:

A few years ago, I wrote a blog post on a different Ruberg & Renner camera, and at that time, there needed to be more information regarding the company. In that post, I wrote: The Ruberg cameras were manufactured by the Ruberg & Renner company, located in the Delstern district of Hagen, Germany, during the 1930s.  The company was started in 1918 by Josef Ruberg, who originally started producing drive trains for bicycles, motorcycles, and automobiles. After 1930, the company began making simple cameras. In 1931, Josef obtained a patent for constructing a simple camera in Germany. He also received a patent in the United States in February 1932.

 The patent application states that the simple and very inexpensive production of all the camera parts from synthetic resin, which was done from a single pressing process, "makes it possible to place a cheap camera on the market that is affordable to all. " In the 1930s, Ruberg & Renner manufactured four models with 25 designs for export to the USA, Great Britain, and France. The cameras' construction ended in the mid-1930s when the company started producing products to help the German war effort.

 After doing some digging, I came up with the following: Along with cameras, chains remained the company's main business. From 1935 onwards, the series production of ammunition belts marked the end of camera production in Hagen, which shortly afterward followed.

 Josef Ruberg had designed new metal cartridge belts for machine guns in 1917. The Treaty of Versailles banned the production of automatic weapons and accessories from 1919 to 1935. In February 1936, Ruberg & Renner applied for a patent for a metal cartridge belt for the MG 17 (caliber 7.92x57 mm). These specialized units are equipped with ammunition for machine guns and military equipment in the military air force. The sons also worked in the company. Felix (1909-1994) was born in 1937 in Delstern. It manufactured on-board gun carriages until the beginning of 1945. In 1941, his son Werner (1912-2005) took over the management of the Ruberg & Renner chain works.

 Ruberg & Renner continued producing drive and transport chains in 1947. The Felix Ruberg metal goods factory manufactured household appliances. From the early 1950s, Ruberg & Renner promoted cycling and motorcycle sports. Roller chains were used in particular here. Until 1967, the company, like the Schweinfurt Torpedo Works and Fichtel & Sachs, had its racing teams in the Federal Republic. In the following years, the firm of the US-American company Rexnord was taken over. Rexnord Kette GmbH relocated its production from Delstern to its current location in the Lennetal near Fley in 1982. Much of the historical information comes from the Westfalen Museum.

My Camera:

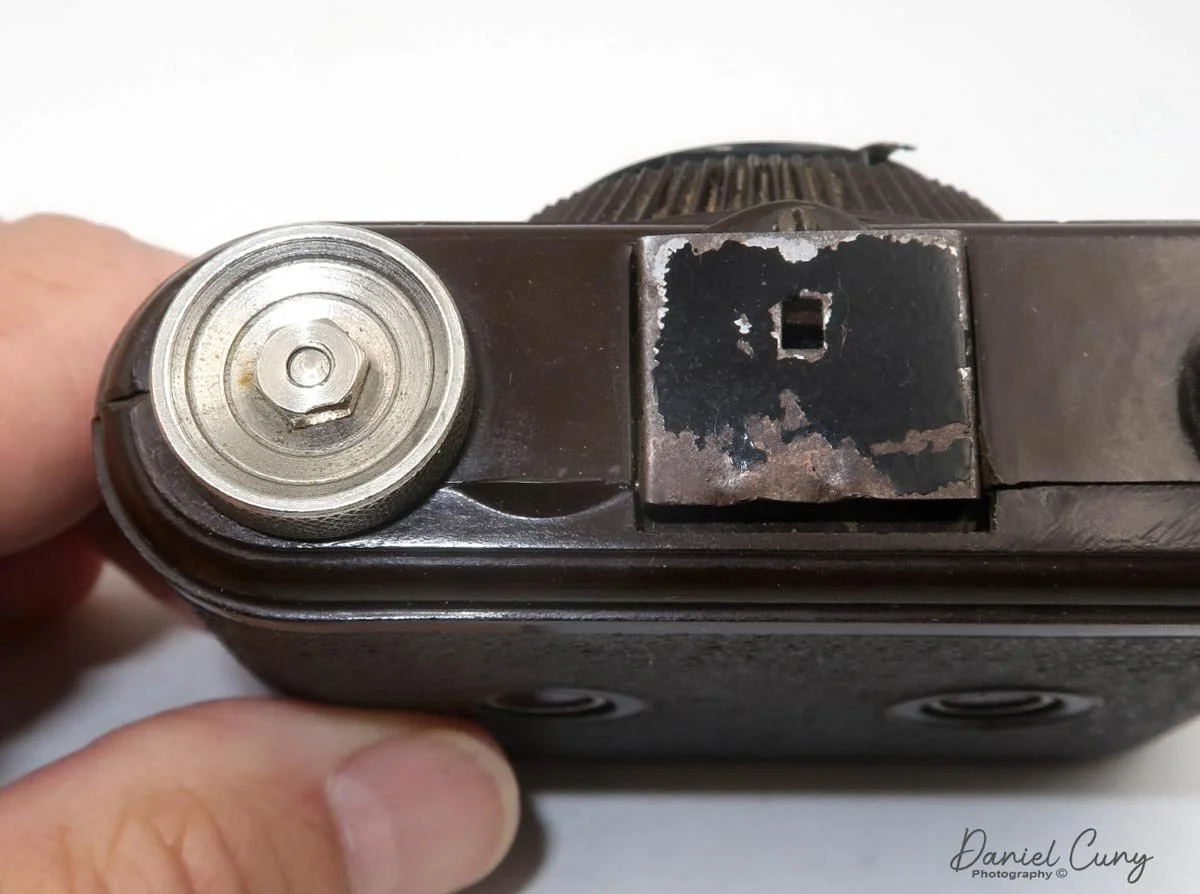

My Bussox-Sport Luxe camera is 3" tall, including the winding knobs, by 3 5/8" wide, by 1 5/8" deep with the lens retracted and 2.5" deep with the lens away from the body and focused to the closest focus distance, which is 1 meter. The camera weighs 6.1 oz, which is very small and compact, and takes 127 rolls of film, producing 1.25" by 1 5/8" sized negatives. On my camera, it's etched by the previous owner 4x6 1/2 in many different places.

To open the camera to load the film, a chrome button is on the left side of the camera if you're holding it to take a photo. Press the chrome button, moving a brass grip from holding the door closed on the camera. There are a couple of "thumb grips" on both the back door's top and bottom, which you hold onto to open the back. The back door doesn't come off the camera as it's hinged, and the door swings to the right to open.

On many cameras, to load the film into the camera, you pull up the tabs that hold the spool into place, which I tried, but the knobs didn't move. You need to turn the knobs which make you think you're unthreading them. By doing so, the knobs move away from the body of the camera, and you can load a roll of film or move the empty spool into the take-up position. The fresh roll of film goes into the camera's right side and you pull the leader to the left side where the take up spool is. This is backward to many cameras, or the many that I use, as the take-up spool is generally on the camera's right side.

Now that the film is loaded into the camera, it's time to take photos. The camera has a straightforward meniscus lens. There is a knurled collar around the lens that you need to turn in a clockwise motion to extend before taking a photo. The lens barrel is on a helicoid, which extends the lens when the knurled ring turns, much like on a bolt.

 For the shutter, two settings are located in the upper right of the lens and include settings "I" for instant or turn the wheel to "T" for time. Below the lens are the aperture settings. On this camera, since it's for the French market, there is Grand for the widest setting and Petit for a smaller aperture setting. One of the settings is Ferme, which means firm. When the aperture is set at Ferme, it does not open over the lens or block all light from reaching the film.

Focus control on Bussox-Sport camera

Since there is no lock for the shutter, the shutter release in the 7 o'clock position on the lens can fire at any time when pressed. Whether the lens is out or in, the shutter will fire. This setting is similar to a lens cap, and by putting it in position, if the shutter fires, no frame will be exposed to light or wasting film. The photographer would need to consciously set the camera into and out of this setting every time they put it into the case or pocket, then change it when taking a photo.

To retract the lens to put it back into the camera case, you turn the knurled ring counterclockwise, and the lens retracts into the camera body. I can now understand the "Ferme" setting, as many of the negatives on the roll in the camera when purchased were exposed with the lens in the retracted position, as you can see in the results area on the post.

The results:

As mentioned, the camera had a roll of 127 Agfa film, so I walked in front of my house and took photos of a planter box and some trees in our neighborhood. There were only about four photos left. After taking the photos, I went home and processed the film. It didn't surprise me, but the images within the camera didn't turn out, and the ones I did around our hose turned out barely and were extremely thin in the exposure on the negatives.

 Here are the results from the film in the camera. As I mentioned earlier, I did note that it's easy to take a photo when the lens is retracted, making the image size smaller on the negative, which you can see on the negatives.

My Conclusion:

The shutter on my camera doesn't always work, so while I'd like to put a fresh roll in it and try it again, I don't think the shutter can take it as it's barely opening and closing as it is. I'll get brave and see if I can take the front off and fix it, but it's resting along with many other cameras in my collection. I love the color and the helicoid lens system.

Thank you for taking a few minutes to look over this week's blog post. I'd love to hear from you, so let me know your thoughts and if you have any of the Ruberg & Renner cameras in your collection.

Until next week, please be safe.



PIC Camera

The PIC camera was on my list of cameras to review just before I returned to work after the two years lost years of COVID-19. Recently, when I looked up from my desk and saw the odd and unusual camera, I wanted to put a film into the camera, run it through its paces, and do a blog post on it. The main thing that caught my eye was the shape and size of the camera. You don't come across many round cameras with a straightforward design.

 I am trying to remember where the PIC camera came from, as I've owned it for five to six years. Like many of the other cameras I write about, the PIC camera was included in a group or "lot" of cameras purchased. I do remember when I received it; my first thought was that it was a "toy" camera, which I own many of.

The more I examined the camera, the more I realized it was not a serious camera. It does not have the ability to set shutter speeds, aperture settings, or even focus at a specific distance. It's just a simple point-and-shoot camera made for quick snapshots, a camera you can keep in your pocket for when you travel on holidays or visit friends and family.

The Company:

From what I can see online, the PIC camera is another camera with very little information regarding the manufacturer. There's conflicting information about the camera and who and when it was made. Some of the information I found states the camera was made in England sometime in the early 1950s by a company named Pressure Sealed Plastics Ltd. and distributed by Pic Distributors Limited.

 When I looked up information about Pressure Sealed Plastics Ltd., it was initially a London-based company. It states that the company existed from 1955 to 1966 when it was purchased. It was transferred from Peckham to Chesterfield in May 1970. Some online information also states that the company was not in London but in Southend on Sea. I'll leave it someplace in England.

In 1986, the organization was divided into two trading operations: Consumer Products and Industrial Products. The former was responsible for waterbeds. The latter took over the remaining operations and manufactured Rompa products, waterbeds, etc.

 From the information I found and posted above, I have no idea where the idea or manufacturing of the PIC camera came from. If you have other information on the camera, who designed it, or the company that made it, please let me know, and I'll change the information in the post.

The Camera:

The PIC camera is a round camera that measures 3 3/4" in diameter, is 1 7/8" deep, and weighs 3.7 oz. with a fixed focus meniscus lens. The camera has a slight convex shape on the back along with the front, but halfway into the convex shape on the front, there are two tiers of flat surface where the shutter and lens are placed. The side view of the camera resembles a spaceship or UFO.

To open the camera to load the film, there is no latch or hinge to open the back of the camera, but you slide the front of the camera from the back of the camera and pull it off. My guess is this is where the "Pressure Sealed Plastic" comes from, as it's held together by a tightly fitting front that fits onto the rear of the camera.

 The rear of the camera has nothing other than two red windows that tell you the frame number you're on when advancing the film. On the outside of the back of the camera is written, Pats. Pend. Reg Dsgn No. 870468, Made in England. On the bottom right of the back of the camera is a slot where the film advance wheel fits.

In front of the camera, you load the film via an insert that fits into that area. The insert is a place to put the take-up spoon on the right and a new roll of film on the left. There's an opening for the negative, which measures 1 3/8" wide by 1 7/16", the exposed image size on the negative. A hinged wire acts as a pressure plate to keep the film flat when loaded into the camera. The insert is removable to make loading and unloading the film more accessible.

Underneath the film insert is a metal disc that covers the shutter assembly. When I received the camera, the shutter wasn't working, and I didn't notice that the metal disc covering the shutter assembly wasn't in its correct place. When I decided to write a post on this camera, I wanted to see if I could get the shutter working. This assembly is elementary and something even the non-mechanical person I am could get working again. I popped off the disc, and the shutter has two different levers corresponding to the levers on the front of the camera. My guess is that there is a shutter lever for "T" or timed exposures and another lever, "S," for snap. Generally the second shutter setting is "I" for instant, but this one is different.

 In the middle, there is a disc on the end of a piece of thin aluminum with a hinged rivet on the bottom that has the shape of an open safety pin, but the pin part is short, so it doesn't fit into the safety part. A spring holds the lens cover assembly in the closed position. Above the lens cover are your shutter levers, which also have hinged rivets, with a more extended metal arm that is bowed in the middle to fit over the lens covering disc, and on the bottom of the arm is a slight bend that allows the arm to interact with the shutter cover assembly. On the left of the shutter cover is a lever for the "T" shutter release for timed, and on the right is "S" for snap. A spring is between these two shutter assemblies to hold the arms away from the lens cover assembly.

Here's how the different shutter levers work. When you pull down the "T" lever, the shutter assembly arm slides over and pushes the lens cover away from the lens. Holding the shutter lever down keeps the lens open for the length of time you hold the lever down. When you pull the "S" lever down, it slides the shutter arm over the  "short pin" arm and grabs the shutter cover assembly. When you release the "S" arm, the shutter arm pulls the lens cover away from the lens, and due to the short pin arm, it slides off, and the lens cover closes, making a short exposure somewhere in the 1/50 sec timeframe.

The viewfinder on the PIC camera

There is a round viewfinder on the top of the camera, which doesn't correspond to the shape or the distance you get within your photos.



The Results:

I had some expired 127 film from Film for Classics, which I purchased just for these cameras to test out. I fixed the very basic shutter, replaced the metal disc covering the shutter assembly, loaded a roll of film into the camera, walked around my house, and took photos, and here are the results.

My Conclusion:

You can tell from the photos that the lens isn't very sharp. It has a very "Lomo" look to it. I didn't get to photograph something close because I felt the plastic fixed focus lens wouldn't produce tack-sharp images, but it did take pictures. It was easy to use, but I'd take nothing on holiday unless the photos I wanted to create were similar to a Diana or Holga-style camera. Overall, the camera worked, and I discovered it's relatively rare due to the plastic construction and short camera run. People ask for around $500.00 on eBay when you can find them. I'll put it back in my collection and move on to a different camera next week.

 Please comment on your thoughts on this or other cameras I've discussed. I'd love to hear your thoughts on this camera.

 Please be safe until next week's camera post.

Inoca Six Stereo Camera

This week's camera is the Inoca Six Stereo Camera. I'm perplexed by it and wanted to see if others have it or have any information besides the very sparse information I can find online. I'm particularly interested in learning more about its history and the context of its production. If you have any insights, I'd love to hear from you.

My Inoca Six Stereo Camera

 Four to five years ago, I stumbled upon a unique find on an online app I frequent for camera and photo items. The Inoca Six Stereo Camera, a seemingly familiar yet rare gem, caught my eye. The seller's claim of its extreme rarity, with only three known to exist, further fueled my interest.

 At that time, I did the average online search and couldn't find much on the camera or its manufacturer, Morita Trading Co., so I decided to take a chance on it. The camera wasn't cheap, but it wasn't overly expensive, so I couldn't take a chance on it, especially if it was so rare. There were only three cameras left.

The Company:

Morita Shōkai, or from what I can find online, was Morita Trading Company, a camera manufacturer and distributor in Japan during the 1950s. Their most prominent and most well-known cameras were subminiature cameras that had a resemblance to the Leica rangefinder cameras. I've seen many, like the Gem 16, Kiku 16, and Saica, which took 10-14x14mm images on miniature 17.5m film. They also made Bolta Film cameras like the Kikuflex camera in 1957 and the Inoca Stereo camera in 1956.

 There is a Japanese book, Japanese Camera History, as seen in advertisements, 1935–1965. The book was written by the publishers of Asahi Camera, which was a Japanese Camera magazine from 1926 until June 2020, where some of the Morita cameras are advertised.

My assumption was that the camera/distributor was very short-lived with the subminiature market's rapid rise and quick fall. In that specific timeframe, from 1955 to 1957, when these cameras were made, Morita tried to expand into Bolta film cameras like the Kikuflex, which is more common than the Inoca Stereo camera I have.

My Camera:

According to the case, I own an Inoca Six Stereo Camera. The camera is a straightforward bakelite stereo camera. All I see online is the Inoca Stereo camera. None of the cameras I see online have or show the fitted leather case; honestly, I have only seen three examples of this camera. One is on Camera-Wiki, and this is the camera I own. The eBay seller isn’t available on eBay so that I couldn’t contact them for more information. The second example I've seen is a camera sold at auction by Auction-team.de, and Leitz Photographica Auction sold the third example of the camera. The camera sold for quite a bit on the Leitz site many years ago.

My camera measures 4.5" wide by 3" tall by 2.25" deep and weighs 7.6 oz without the case, but the roll of film was in the camera. My camera has two chrome lens caps attached to the lenses. Looking on top of the camera, the winding knob is on the far left, and on my camera, the winding knob has three rings around the top of the knob. Looking at the camera from the Auction Team website, the winding knob is flat and looks to have leatherette or paint on top. Right next to the winding knob is where "Morita" should be printed, but someone took a hot implement and erased "Morita," but below where it's erased, & Company can be seen. On the other side is "patent" written.

On either side of the "Inoca" script, on top of the viewfinder, are two small sockets, which I'm guessing were for a flash, but that's just my guess. The shutter release is next to one of the small sockets, and the film holder is on the far right side of the camera. On the film holder is a knurled ring with an indent in the center with black paint.

 Upon inspecting the back of the camera, I discovered a film counting window with a side cover and a green window to view the frame numbers. To my surprise, a roll of film was still in the camera, held closed by white replacement tape. With 'MINORI' printed on the ends, the film spool added to the intrigue.

On the front of the camera is the word "STEREO" italicized and just under the front viewfinder glass. To the right of the word "stereo" is the shutter cocking lever. When the camera has already shot, and the shutter is not cocked, you see a red arrow pointing towards the left, and the cocking knob is to the far right position. Sliding the knob to the left, you've cocked the shutter(s) for both lenses, and the word "set" written in red is visible. Pressing the shutter release resets the knob to the right side position, and the arrow is visible again. On the outside of either lens is a screw which I've seen a chain with a lens cap attached to it, but unsure if that's really what they are for. My guess is to remove the front with the lenses, shutter, and aperture.

 Below the left lens is where you set the shutter speeds. The camera can only shoot at 1/25, 1/50, and 1/100 sec, along with "B" for exposure times. Below the right lens are the aperture settings with your choice of F8 or F11. Both the shutter speeds and aperture setting are controlled by a simple knob similar to the knob used to cock the shutter.

Lastly, the bottom of the camera is printed "Made in Japan," along with a tripod mount for timed exposures if needed. There is no cable release capability if you want to do a time exposure. Another interesting item on the camera is a triangle pointing upwards between the two lenses with the letters M.W.T, and along the bottom line is a curved line, which generally represents a lens symbol. I'm wondering what M.W.T means, Morita, something?

 My camera also has a leather-fitted case, which is pretty tattered but still comes with the camera. You can see Inoca Six embossed on the front, so that's my guess at the official name, but I've only seen the Inoca Stereo camera.

Conclusion:

I realize this is a short post, but I could have developed the film found in the camera. Unfortunately, I didn't have a film ready to fit the size of the film, so I left it until I got something I could do. The camera is fundamental, and I like its design. It reminds me of the Start 35 K-II camera, another Bolta film camera made in Japan during the same timeframe.

 Thank you for taking the time to look over this post. If you have more information on this camera, please let me know. Otherwise, I think I have one of three cameras I know of and have seen online.

 Until next week, please be safe and well.

Nova Subminiature Camera

This is my Nova Camera

My camera collection is very eclectic, and I am drawn to odd and unusual cameras and photo items. I did a blog posting on the Minolta Six camera a couple of weeks ago. What drew me to that particular camera was that it didn't have the standard cloth bellows system but rather a series of metal cubes that pulled out and retracted back into the camera to form the bellows. These were very similar to a camping cup, where the larger rings pull away from the smaller ones on the bottom, creating a cone-shaped cup.

 A year or so ago, there was a pretty major auction of cameras in the United States, with hundreds, if not thousands, of cameras and other photo items sold. There were many "lots" that had several cameras, maybe as many as 25-30 grouped into similar lots. I won one of these "lots" that had several smaller and subminiature cameras, many in their cases and several in the original box. The Nova Subminiature camera was in that particular lot.

I can still remember unwrapping the camera and opening the case to a camera I had seen in McKeown's Camera price guides many times. When I pulled the bellows out to find that they had a cubed bellows system, I immediately put the camera on my display shelf because I was drawn to its look.

The Company:

Here's where it gets odd. The only thing I can find about this camera or who made it was that it was created by Erwin Adloff Apparatebau, Berlin-Wilmersdorf, in 1938. Even that is suspect, according to McKeown's guide, as they have the Nova listed separately. There is a camera called the Adloff Tex camera, which has a body similar to the telescoping box bellows but with a more elaborate shutter.

Nova Camera closed. It’s very compact.

Another oddity about this camera was that it was designed by Fritz Kaftanski, who was born in Essen, Germany, in 1899. According to the information found online, Kaftanski started designing Fotofex Kameras in Berlin in 1927. In 1932, Fotofex showed the Visorflex camera at the Leipzig fair and introduced other cameras a few months later.

 In 1934, the Sida and Extra Sida were tiny cameras produced in Germany, then later in Poland and Czechoslovakia under license in Italy. In 1937, Kaftanski moved to Czechoslovakia with the Sida patent, where production continued. Then, according to all I can find, Kaftanski moved to Paris in 1939, so sometime before moving to Czechoslovakia, he either designed the Nova for Erwin Adloff or someone else who remains unknown designed the camera.

Since little is written about this company, my best guess is that Erwin Adloff Apparatebau, Berlin-Wilmersdorf, was a small manufacturer producing one or two cameras just before World War II broke out. Many records either went missing or were possibly destroyed during the war. Fritz Kaftanski designed the Nova sometime before 1938, when it was produced. However, from what I can find online, I don't see any definitive proof or acknowledgment of Kaftanski designing the Nova, although he did create many other cameras during this timeframe.

 My Camera:

My camera is pretty small, measuring 3 5/8" wide by 2" tall by 1.5" deep with the lens retracted and 2 5/8" deep with the lens extended. The camera without the case weighs 7.1 oz, and with the case 9.9 oz. It uses paper-backed unperforated 35mm film, known as Bolta film, which was very popular during this timeframe and something I discussed in my last post.

When you first look at the camera, it looks extremely plain, yet it has some Art Deco features, like the lines around the lens and the text used for the name. Pulling the lens away from the body reveals the double box bellows, which are very ribbed silver. When the camera is flat on its back with the bellows extended, they almost give the camera a wedding cake look.

On either side of the camera is a textured finish to the metal design to help with gripping. I don't know how much gripping is needed for such a small and lightweight camera. On the back of the camera are two more grips on the sides of an exposure table explaining the shutter speed depending on the distance to the subject, shutter speed, and aperture set on the camera. There is no mention of different film speeds. Just above the exposure table is a green window, and another green window is the camera's viewfinder. Just below the exposure table is the word "FOREIGN," and on the front, below the lens, is D.R.P. ANG D.R.G.M, meaning this was made for domestic or international sales.

 The camera has three shutter speeds: 1/25, 1/50, and 1/100 sec, along with "B" for timed exposures. On the side of the lens is a lever that can be pulled out to change the aperture from wide open at f4.5 to f6.8. This is very similar to what box camera employed to change the aperture. At the 10:00 o'clock position, around the lens is the shutter release, and around the lens is the focus adjustment in meters, with the closest focus being 2 meters.

To take the back off the camera, there are two knobs you pull apart to get to loading and unloading the camera. Two films should be holding cassettes in the back of the camera, but mine only came with one. Interestingly, the film holding cassettes is Hermes Nova. Did the French company Hermes design the film holders, and how was a French company involved in this? This could be where the involvement of Fritz Kaftanski comes into play, as he did move to France in 1939, the year after the camera came out. Were there discussions between Kaftanski and Hermes during the mid-1930s?

Hermes Nova film cassette.

On the top of the film holder are four bumps or knobs that need to align with the slots on the camera film advance knob, otherwise, the film cassette won't fit in or out of the camera. Once the slots and the knobs are aligned, the film hold comes out quickly, and you can take it apart to load the film into the cassette.

Once the film is in the camera, the film moves over a geared wheel above the film chamber, rotating a wheel with a white dot and white dash. As the film transports across this wheel, you can view this movement through the green window on the back of the camera, just above the exposure table, so you can tell when your following exposure will be as there is no frame counter on the camera, nor are there numbers on the Bolta film, so this was the only way to tell when you got to the next frame.

Conclusion:

I couldn't use this camera since I didn't have Bolta film to shoot with or a second film cassette, even if I did have the film. The Nova is a beautiful little camera, and I enjoy having it in my collection. Since the camera was only made for a year, how many cameras were made is unknown. Looking at the back door, there is 1114, which may be the serial number, but not 100% positive. Due to the lack of production and not seeing many for sale, I guess it's a reasonably rare camera.

My Nova camera in the fitted leather case

Thank you for taking time out of your busy day to review my film blog. I have another great camera picked for next week's blog, and I hope you'll look out for it.

 Until next week, please be safe.

Dan 35 I Camera

My Dan 35 Model I camera

I need to start this post back in time. I first started collecting cameras and other photo items in the late 1970s or early 1980s. I can remember purchasing one of McKeown's Camera Price Guides and spending hours combing through each camera manufacturer, looking at the cameras they had made in the past. There were so many odd and unusual like very rare original Leica; the very first bullet-shaped brass Voigtlander camera, the Compass camera or Photosphere that I could only dream of owning, and many were so far from the price budget that I knew there were only a pipedream.

 Many large companies, like Eastman Kodak, Polaroid, and Zeiss, made hundreds of different model cameras, which were abundant. Then, there were the smaller camera companies that produced unique cameras, like Univex, which was the first camera I owned. It was a Uniflex that was given to me by my uncle Bud, who, to this day, along with my brother Tim, I owe my love of photography.

 Then, I can remember thumbing through the price guide and finding a tiny company that produced a camera near and dear to me, the Dan camera. I immediately thought I needed to find one of these to put into my collection. My initial search was hopeless, as many of the local flea markets and antique stores I'd frequent only had the very common Kodak, Polaroid, Zeiss, and other companies like Herbert George and other American brands.

Online Auctions:

It would help to remember that this was before eBay, which didn't exist before the mid-1990s. I was an early adopter of buying and selling on eBay in 1997. At that time, there were no photos, and it was mainly just a buy/sell board with an auction element so you could post a camera or item for sale, but you only had the description from the seller to go by. When I first joined eBay, there was no name to have but a number. My original number was 1034; you had to do everything through DOS.

 EBay made a massive difference as it gained popularity. It changed how people bought and sold items. Adding photos gave the buyer more confidence in their purchase, and rarer items could hit higher pricing due to the inability to find them.

 For many years, the Dan Camera was very elusive, and since the camera was from a smaller company, the scarcity and pricing made the purchase of it next to impossible up until a couple of years ago when I was looking through a different online auction website, and I found a grouping of cameras which piqued my interest. As I zoomed in to look at this lot, there was a portion of a lens I could see.   I could barely read "Dan" on the ring around the lens as I looked closer. Here was my chance to finally own the elusive Dan 35 camera.

Name embossed on the back of the camera.

 The auction happened, and there was minimal interest in this group of cameras as many of them were very common items. However, these are the groups that I really enjoy because tucked away in the corner "could" have a gem hidden, and in this case, there was. I won the camera lot, got the items shipped to me, and there it was as I unwrapped it: the Dan 35 camera. To my amazement, it was the first model.

History:

The Dan 35 is a simple Bolta film camera made in Japan after WWII. Bolta film was invented by Johann Bolten, who founded Bolta-Werks in Nuremberg, Germany, in 1936. The film was to go into his smaller, more compact cameras named the Boltavit. Bolta Werk later produced the Photovit line of cameras from 1936 to the 1950s. Bolta film was incorporated into many different cameras during this period and was a nonperforated 35mm film with a paper backing loaded into special cassettes. Later models of film were spooled similar to films like 828 and 127.

Stetch of Dan 35 Camera by Hagimoto Danji.

 The Dan 35 camera was made by Hagimoto Danji. He built a small plant in Suwa to manufacture the Dan 35 camera, which he sold in his camera shop in Ginza after WWII in 1945. After the moderate success of the Dan 35, there were three different distributors for the camera between 1945 and 1950, when the camera company went bankrupt. The logo on the camera coincides with the company's name, which is H for Hagimoto above Dan for Danji on the far right of the camera.

 Here's where it gets a bit fuzzy. Yamato Koki Seisakusho was a camera company that started in Tokyo in 1943. It made shutters for Japanese camera companies like Gelto and Leotax. The first cameras produced by Yamato were the Minon 35, Minon Six, and Pax 35.

 Yamato, known to produce the Minon 35, a copy of the Dan 35 III and later the Pax 35, is a camera that is a copy of the Super Dan 35. Some sources say Yamato made the Dan 35 and Dan 35 II, but others say they took over producing the Dan 35 after Hagimoto went bankrupt in 1950. Yamato produced the Pax line in the 1960s.

My Camera:

The Dan 35 is a very simple camera with a torpedo-shaped viewfinder on top. It measures 3.25" wide by 2.25" tall from the base to the top of the finder and is 2" deep from the front of the lens to the back of the camera. The camera weighs a whopping 5.2oz and is considered a miniature camera. The Dan 35 has a Dan Anastigmat 40mm f4.5 lens with a Silver-B shutter.

Around the lens is the focus ring, a helicoid focus measuring from 1 meter to infinity. Just behind the aperture numbers on the lens is a knurled ring that sets the aperture. In front of the aperture numbers is another knurled ring that sets the shutter speeds on the camera. There are only shutter speeds, 1/25, 1/50, and 1/100 sec, along with B. On the left of the knurled ring is a cocking lever to cock the shutter, and the shutter release is on the right side to expose the film.

Logo and Torpedo viewfinder

 To load the film, on the top of the camera is a locking lever with "L" for lock and "O" for open. Switch the lever to "O," and the top comes off to load the film. The base comes off to load in later models like the Dan 35 Model II. My camera has no spools to load the film, and the shutter doesn't work. On the back of the camera is a red window with an open/close lever to see the numbers on the paper backing of the film so you know where to stop for your next exposure. Also, Dan 35 is embossed on the back of the camera.

Conclusion:

Unfortunately, I don't have film, and the camera's shutter doesn't work, so I couldn't take photos with this camera to share.

 I mainly have this camera for a couple of reasons. One is its rarity; the more important reason is that it has the same name as me, so I get a kick out of that. I have another miniature camera set aside for next week's blog post, which I also find fascinating.

 Thank you for taking a few minutes to review my blog post about the cameras in my collection. Please be safe until next week.



Marchand Fischer Baby Camera

Whenever my wife and I visit a foreign city, I check to see if the town or a surrounding city has a Flea Market to check out the local market of used and collectible cameras. This spring, my wife and I returned to Paris, which has a robust and large Flea Market area that thrives on the weekends.



The Flea Market, which comprises smallish stalls selling goods from carpets to antiques and almost anything imaginable, was a used camera store. It was not in the flea market but on one of the main roads surrounding the markets. Looking around the camera store, I noticed that the shop owner had many great cameras, but one that caught my eye was the Fischer Baby camera made by Marchand.



The Company:

I don't have much to say here, as I've searched the Internet and cannot find out much about this company. It's most likely because they were a small French company in Charbonnieres, France, after WWII. They produced a minimal amount of toyish cameras in the 1950s sold in toy stores. Due to their build quality, which I'll get into more when I explain the camera below, they were poorly received and, therefore, went out of business.

 If you or anyone who reads this post knows anything about Marchand Co., which produced these cameras, I'd love to know, and I will update the blog post with that information.

The Camera:

There are a few items that drew me to this camera. The faceplate is typical, but it does have a 6 on one side of the lens and 9 on the other. My first thought was that it was a fascinating film format. I'm a real enthusiast of anything panoramic, so this was the first light bulb in my head. Then, when I got closer to the camera and picked it up, the bulbous size and extremely light weight of the camera were pretty fascinating. It has almost a circular look and feel to the camera. Being someone who enjoys panoramic cameras and images, the 6x9 format made this very intriguing.



The camera is straightforward and similar to a Box-style camera but even simpler as there is no aperture setting and only two shutter speeds. The Fischer Baby has a very simple shutter with a bulb setting  "P" for time exposures and an "I" setting for instant. The camera's shutter, at least on my camera, "clicks" when you press the shutter button down, which exposes the film, but it does the same thing when you pull the shutter button up to what most people would think it to be the starting position. The shutter speed is about 1/80th sec, and possibly even slower.

Another fascinating point about the camera is how thin the plastic is. It doesn't have a lot of "heft" to it, and it's pretty light—the camera loads like any other simple point-and-shoot style camera from the late 1940s to mid-1950s. There's a red window on the back of the camera so you know when you're at the next frame to take a photo. The transport continues, but you can wind past the next frame if you're not careful.

 The Baby Fischer has no frills in its design. Two clips on the side of the camera keep the front of the camera attached to the back of the camera. There is no locking mechanism, and the clips could open easily, exposing the photos already taken. My camera is missing its strap because one of the eyelets has broken off, which I'd guess is pretty standard due to its build quality.

The Results:

My first impression was that this camera takes 120 film. When I went to load the film, the 120 roll was too big, so I thought this must be a 620 film camera. Its re-spooling capability allows you to re-spool 120 films onto a 620 reel. I found an empty 620 film spool and a 120 roll of T-Max film, put them into my dark bag, and re-spooled the film.

 I had never done this before, and when I took the film out of the dark bag, it looked OK. It was not professionally done, but it was my first time doing so. After loading the film into the camera, I took photos with my second spare 620 spool.

 The results showed that my re-spooling wasn't perfect. In fact, it was poor, as there was some light leakage coming from the end of the spool where the film wasn't tight enough. Other than the light leaks, the results were pretty good.

The Conclusion:

After walking around my backyard and in front, too, the camera could have been better to work with. The viewfinder was challenging to look through and not precisely in its proportions. The winding was OK; you can see the film advance and frame numbers in the red window on the back. Since there wasn't a strap on my camera, I had to carry it, which wasn't uncomfortable, but I was always thinking about not dropping it. I'm glad I did a post on this camera and have already picked the camera for my next post, which will be on the Exakta 66 camera.

 Thank you for reading this post. I appreciate your time. Until the next post, please be safe and well.



Pouva Start

Whenever my wife and I travel, I'm always looking to see if the country we're going to has a flea market or someplace where there might be a possibility to find cameras. It might be in a run-down antique store in Vietnam where I found a few cameras. One of my all-time favorite places was a flea market outside of Prague, Czechoslovakia.

My Pouva Start original model with sport finder opened and lens out.

My Pouva Start original model with sport finder opened and lens out.

The flea market itself was a wild experience. The people-watching and the different items at the vendor's tables was pretty fantastic in itself. I didn't know how many cameras I would find but figured there'd be a good mix of Russian and European cameras. I was correct on both counts, and one of my favorite cameras found there was the Pouva Start. In my opinion, this is a classic 6x6 format Lomography camera. Something compact, well built, and extremely simple to use. Let me tell you a bit about the camera and the company that made it.

Karl Pouva

The Pouva Start camera was built by Karl Pouva AG, who first started his company making simple Bakelite slide projectors in Freitel, a city near Dresden, Germany, in 1939. After the war, that area of Germany was a part of East Germany. In 1951, with his experience with Bakelite, he decided to build a simple camera. Something easy to use, low cost, and a camera to get the youth started to take photos. At the time, the camera cost 16.50 Deutsche Mark (east), which was very affordable for young people.

There have been several different changes in the Pouva Start camera over the years. I am starting with the camera I have, with the pop-up sports finder. Later, in 1956, they updated the design to incorporate an optical viewfinder into the camera and symbols for aperture settings. A sun symbol for smaller aperture settings, and clouds for larger aperture settings. The one thing that stayed constant on the cameras was the screw out lens, which acts as a locking mechanism for the camera.

The Camera

This camera has a very classic design, with a spiral threaded lens system, which is very similar to the Kodak Bullet cameras built in the early 1930s. When the lens is threaded back into the camera body, the shutter mechanism is locked so you cannot take unwanted photos. Once you wind the lens into the taking position, the shutter firing system engages with the shutter button, and the shutter now fires.

On the lens are just four settings, two for the shutter and two for the aperture settings. There is a toggle switch on the shutter side that goes from "Zeit" for timed exposures and "Moment" for a regular shutter speed of 1/30 second. On the aperture side, there is another toggle between "Sonne" Sunny or F16 and "Trub" Cloudy F8. In the later versions, as stated, they used symbols for sunny/cloudy. The camera incorporates a Duplar F8 lens, which has two elements in two groups for simplicity.

On top of the camera is the pop-up sports finder, the shutter release button, a cable release button to thread a cable release into and trigger the shutter: the film transport winding knob, and two metal levers. One of the levers is next to the shutter release button, which you can slide over to lock the shutter for time exposures. The second is by the film winding knob. This lever opens the back of the camera for film loading.

That lever is the one that stumped me for the longest time. I kept wondering how to open the back to load the film. I pulled and twisted several different areas without success. Then I pressed the lever forward, and the back started to come off. The back is held into place by friction and seats tightly onto the camera very well. The lever is attached to a small piece of Bakelite that, when pressed forward, separates the back from the camera, allowing you to take the back off. Ingenious!!!! I love this. So simple.

Photos from the camera:


Conclusion:

The camera is enjoyable to use and doesn't take a horrible photo. I was surprised at how the pictures turned out. They're not the sharpest photos I've taken, but for a simple lens, they're not bad. If you like the Lomography style of cameras, I search out this camera and try it out, as I think you'll enjoy using it and the photos that come from it too.

 Thank you for taking a few minutes out of your day to read this post. I always enjoy it when I hear from you, so please feel free to email me any questions or comments about this or any other camera I've written about. Until next week, please be safe.
